340 MT & 360 propshaft bolts

Post by volvomania » 01 Feb 2012 08:55 am

Now available in any qty from Born Built Beauties; the prop shaft bolts (3293921-C) for the 340 MT and 360 prop shaft.
The bolts come with installation instructions and are "single use" items.
I know that these are a problem as Volvo hasn't had them for a long time.
Just send me a PM for more details.

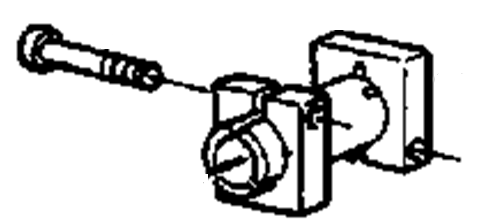

As used on the 360.

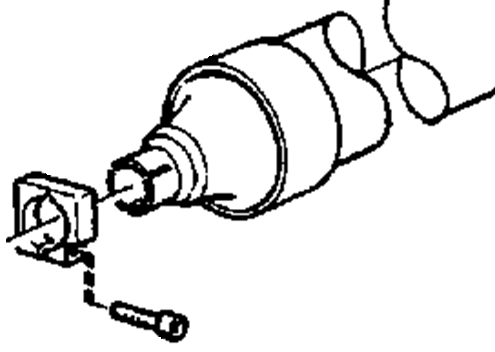

As used on the 340 MT.
Life is a journey, so sit back and enjoy the ride!

Born Built Beauties: Parts keeping our cars on the road!

http://www.Born-Built-Beauties.eu

Ride_on
Posts: 2265
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: 340 MT & 360 propshaft bolts

Post by Ride_on » 01 Feb 2012 08:11 pm

Are these not available from any nuts&bolts suppliers:

M8x40mm Grade 12.9

Pretty much all hex socket bolts are 12.9 these days.

http://www.namrick.co.uk/acatalog/Metri ... lour_.html
http://www.fixingsupplies.co.uk/sockets ... p-s-c.html

I notice the threads are quite long on these, compared with my original one, do we need the shorter threaded version?
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7

User avatar
volvodspec
Posts: 1921
Joined: 06 Dec 2008 09:35 pm
Location: Netherlands.
Contact:

Re: 340 MT & 360 propshaft bolts

Post by volvodspec » 03 Feb 2012 07:37 pm

commonly available yes, but here in holland you can only get them in boxes of 100 or 200 pieces, or 2 bolts cheap and added €15 handling + postage costs.. that's why they got available on this route.
the thread length isn't important, what is that these get replaced on all 360's cause the bolts that overstretch due to aging cause the connecting piece of torquetube > gearbox to fail.

User avatar
Speedy88
Posts: 4057
Joined: 04 May 2009 11:52 pm
Location: Bristol

Re: 340 MT & 360 propshaft bolts

Post by Speedy88 » 03 Feb 2012 07:46 pm

Hmm, can't this be counteracted by doing up the bolts tighter? :lol:

You think it's worth getting some for my 90k miles car?
'88 340 Williams (Sold)
'85 360 GLS - Drift project (Sold)
'77 Colt Sigma
'96 940 Drift project

Ride_on
Posts: 2265
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: 340 MT & 360 propshaft bolts

Post by Ride_on » 03 Feb 2012 09:22 pm

Its is a highly engineered part compared to the rest of the car (outside the gearbox and engine). Its one of the few 12.9 grade parts. Definitely needs to be kept within the designers intentions. I know the 340 ones come off if they are over or under torqued.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7
