Fitting a K&N to a weber 32DIN

Post by mrsoundcraft »

OK so heres how I did mine, seems to be holding up so far and took only a couple of hours at most.
Attachments

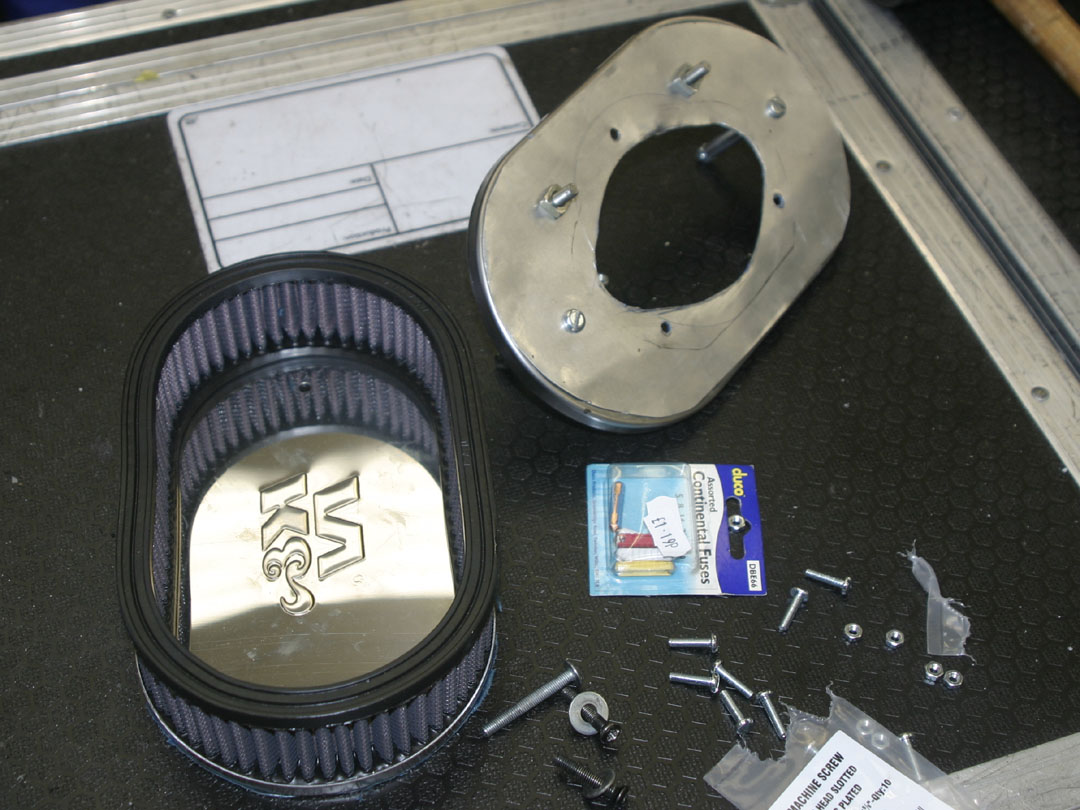

K&N base plate with notches cut out, and some holes added
K&N base plate with notches cut out, and some holes added
My adapter plate, with holes for mounting to the carb and filter.
My adapter plate, with holes for mounting to the carb and filter.
Some gasket, just to improve sealing
Some gasket, just to improve sealing

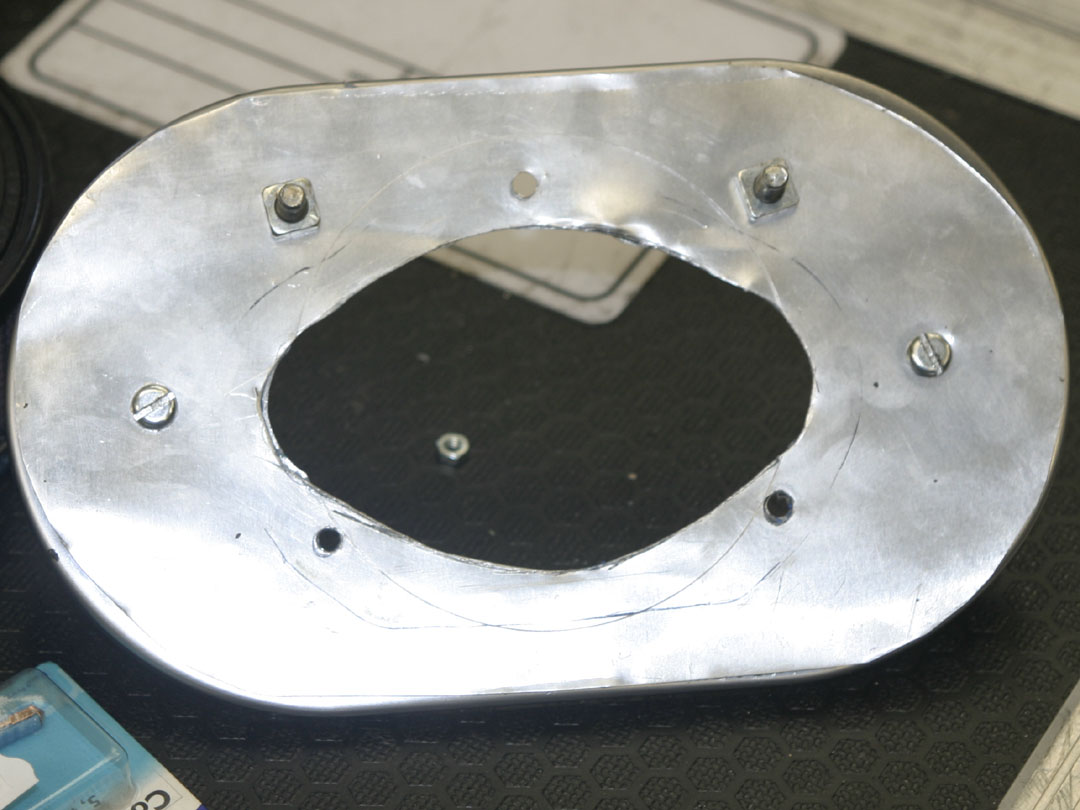

adapter plate fitted to base plate, note that later I found one of the long bolts sticking out was getting in the way of the choke leaver and had to be shortened
adapter plate fitted to base plate, note that later I found one of the long bolts sticking out was getting in the way of the choke leaver and had to be shortened
Fitted!
Fitted!
Last edited by mrsoundcraft on 22 Jul 2009 11:10 pm, edited 1 time in total.
volvosneverdie
*** V3M DONOR ***
Posts: 9143
Joined: 11 Nov 2008 04:22 pm
Location: Newcastle Upon Toon

Re: Fitting a K&N to a weber 32DIN

Post by volvosneverdie »

Very good work dude. 8)
User avatar
mrsoundcraft
Posts: 328
Joined: 13 Jun 2009 01:20 am
Location: Ayrshire

Re: Fitting a K&N to a weber 32DIN

Post by mrsoundcraft »

Thanks. Its all back off again though, along with the carb, manifolds and to many other bits that have nothing to do with the clutch.
User avatar
Speedy88
Posts: 4057
Joined: 04 May 2009 11:52 pm
Location: Bristol

Re: Fitting a K&N to a weber 32DIN

Post by Speedy88 »

just keep taking bits off, surely lighter car = easier to work on? :lol:
'88 340 Williams (Sold)
'85 360 GLS - Drift project (Sold)
'77 Colt Sigma
'96 940 Drift project
User avatar
mrsoundcraft
Posts: 328
Joined: 13 Jun 2009 01:20 am
Location: Ayrshire

Re: Fitting a K&N to a weber 32DIN

Post by mrsoundcraft »

Problem is the only place Ive got to keep the bits is in the car, so its more about altering the weight distribution :lol:
